Description
- Rotating clamp jaws facilitate the measurement at physically awkward positions, vertical bus bars, conductors placed at positions difficult to access
- Clamp jaws can be opened or closed with the trigger placed at the bottom side away from the jaws. This allows the user to place his/her hand at safer distance from live conductor
- The comfortable operation of push buttons and function selector switch, in adverse field conditions.

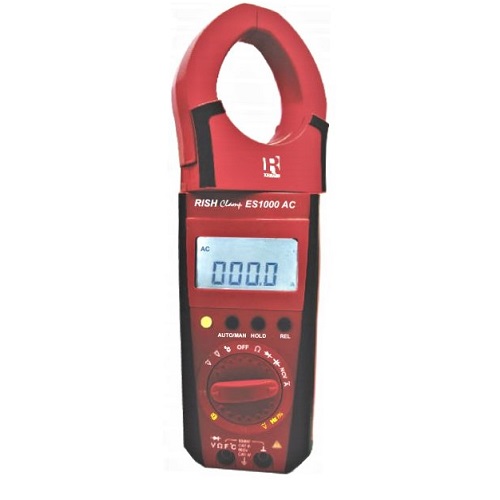

- 1000 A AC Digital Clamp meter
- Category III
- Digits – 3999
- Large Jaw Opening
- Non Contact Voltage Detection
- Narrow housing for firm grip and easy to carry.
- High Accuracy for low current measurement
– Jaw Opening Size: 51 mm
– DC Voltage Range: 400 mV-1000 V
– DC Voltage Accuracy: ±(0.5 % + 2 Digits)
– AC Current Range: 0-1000 A
– AC Current Accuracy: ±(1.5 % + 5 Digits)
– AC Current Resolution: 100 mA / 1 A
– AC Voltage Range: 400 mV-1000 V
– AC Voltage Accuracy: ±(1.0 % + 10 Digits)
– Resistance Accuracy: ±(2.0 % + 5 Digits)
– Capacitance Range: 5 nF-200 µF
– Capacitance Accuracy: ±(5.0 % + 10 Digits)
– Frequency: 0-500 KHz
– Frequency Accuracy: ±(0.2 % + 2 Digits)
– Temperature Range: 0° to 1300°C
– Temperature Accuracy: ±(2.0 % + 3 Digits)
– Power: 2 AAA Batteries 1.5 V
– Operating Environment: 0° to 40°C
– Relative humidity: <75 % RH
– Weight: 600 g
– Dimensions: 270x90x70 mm
– Resistance Range (Ohm): 0-40 MΩ
