Description

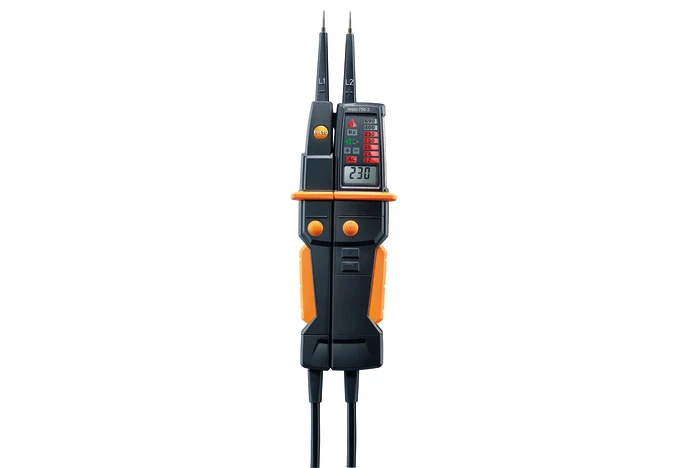

The testo 750-3 voltage tester is the most high-performance model in Testo’s convenient and reliable voltage tester family. In addition to the unique fibre-optic technology, the single pole voltage testing, the torch for measuring point illumination and the all-round LED display, it also has an LC display where the value currently being measured is shown.
The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
Delivery Scope
testo 750-3 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.
Technical data
DC voltage
| Measuring range |
10 to 690 V
|
|---|---|
| Resolution |
1 V
|
| Accuracy |
± (3 % of mv + 5 Digits)
|
AC voltage
| Measuring range |
10 to 690 V
|
|---|---|
| Resolution |
1 V
|
| Accuracy |
± (3 % of mv + 5 Digits)
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
295 g
|
| Dimensions |
270 x 72 x 35 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61326-1; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Display size |
one-line
|
| Display type |
LCD
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600 V; CAT III 690 V
|
| Authorizations |
TÃœV; CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| Display ligthing |
yes
|
| Hold |
yes
|
| RDC/RC trigger function |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
yes
|
| Measuring point illumination |
yes
|
Applications
Ideal for voltage testing
- Clear, all-round LED display, LCD, large fibre optic, torch for measuring point illumination, anti-slip ring and ergonomic handle, RCD trigger function, vibrating load buttons
Overview of applications
- Test electrical circuits or systems for voltage or de-energization (according to DIN EN 61243-3:2010)
- Single pole voltage testing to determine whether conductors are live
- Checking the rotating magnetic field
- Checking RCD circuit breakers
- Testing voltage supply in live wires
