Description

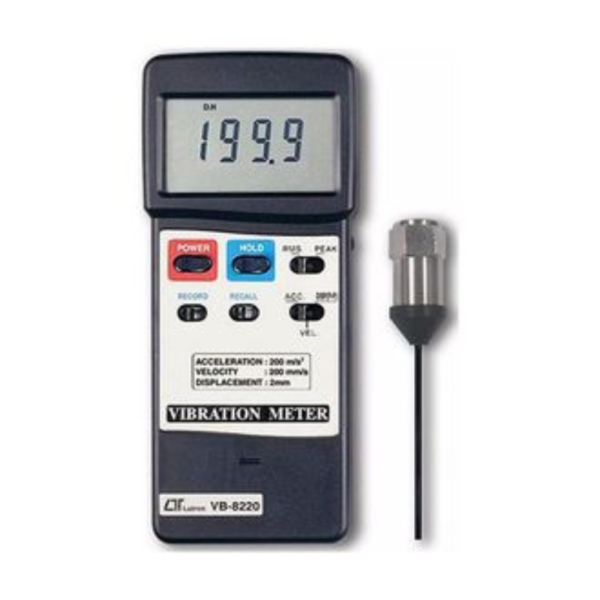

- Frequency range 10 Hz – 1 kHz, sensitivity relative meet ISO 2954.
- Professional vibration meter supply with vibration sensor and magnetic base, full set.
- Velocity measuring range: 200 mm/s.
- Acceleration measuring range: 200 m/s2.
- Displacement measuring range: 2 mm (p-p)
- RMS and Peak measurement.
- Wide frequency range.
- Data hold button to freeze the desired reading.
- Memory function to record maximum and minimum reading with recall.
- Separate vibration probe, easy operation.
- RS 232 computer interface.
- Super large LCD display.
- Micro computer circuit, high performance.
- Auto shut off saves battery life.
- Built-in low battery indicator.
- Heavy duty and compact housing case.
- Complete set with the hard carrying case.
GENERAL
Acceleration Range:Â 0.5 to 199.9 m/s2
Battery Type:Â DC 9V Alkaline or heavy duty type
Brand:Â Lutron
Dimensions:Â 180x72x32 mm
Frequency: 10 Hz to 1 KHz
LCD Display Size: 61×34 mm
Model: VB 8220
Operating temperature: 50 degree celsius
Sampling Time: 1 second
Velocity Range: 0.5 to 199.9 mm/s
Weight: 230 grams
