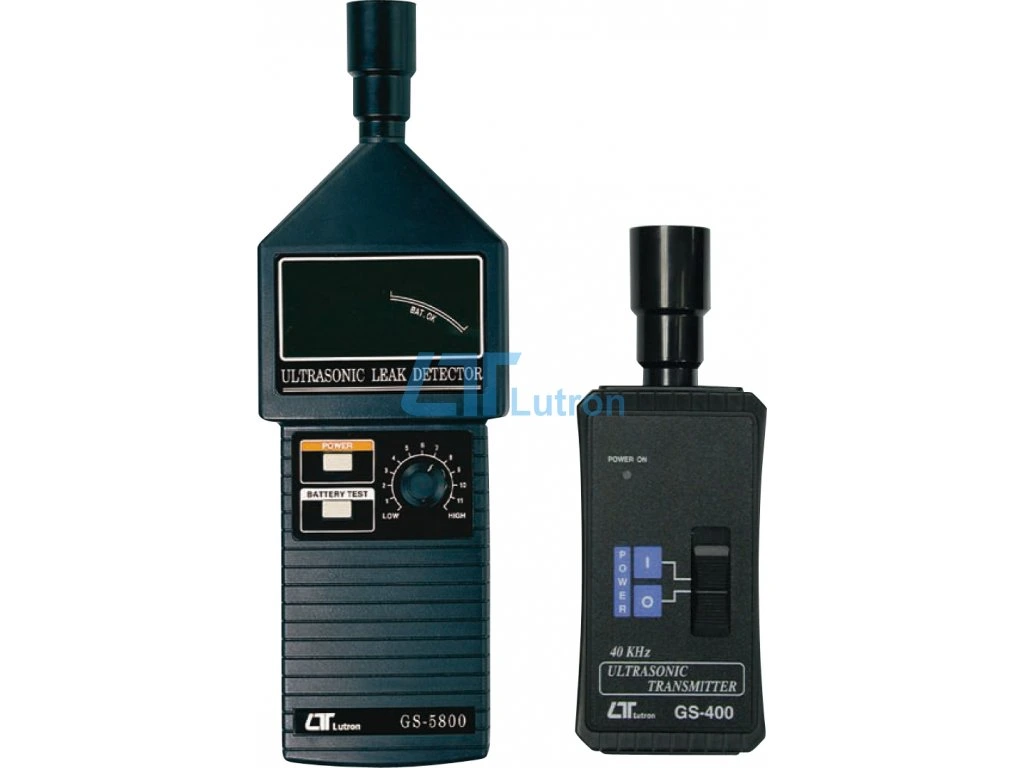

Lutron Ultrasonic gas leak detector LUTRON GS-5800W/GS-400

Description

Lutron GS-5800W is a ultrasonic gas leak detector, GS-400 is a ultrasonic transmitter. This ultrasonic leakage detector is designed to locate the source of the ultrasonic emissions generated by gas, air leaks…. The leakage level is displayed by “Bar LED Display Panel” and converted to audible sound by either internal buzzer or external optional earphone.

GS-5800W:

• Frequency Response 20 KHz to 100 KHz.
• Power Supply DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent, Alkaline or heavy duty type battery.
• Power Consumption Approx. DC 34 mA.
• Operating Temp. 0 °C to 50 °C ( 32 °F to 122 °F ).
• Operating Humidity Less than 80% RH.
• Weight Approx. 260 g/0.57 LB ( including battery ).
• Size 255 x 70 x 28 mm ( 10.0 x 2.8 x 1.1 inch ).

GS-400:

• Frequency Output 40 KHz.
• Oscillator Circuit 640 KHz crystal time base & divided by 16.
• Operating Temperature 0 °C to 50 °C ( 32 °F to 122 °F ).
• Operating Humidity Less than 80% RH.
• Power Supply DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent, Alkaline or heavy duty type battery.
• Power Consumption Approx. DC 7.5 mA.
• Weight 122 g/0.27 LB ( included battery ).
• Size 146 x 50 x 26 mm ( 5.7 x 2.0 x 1.0 inch ).
