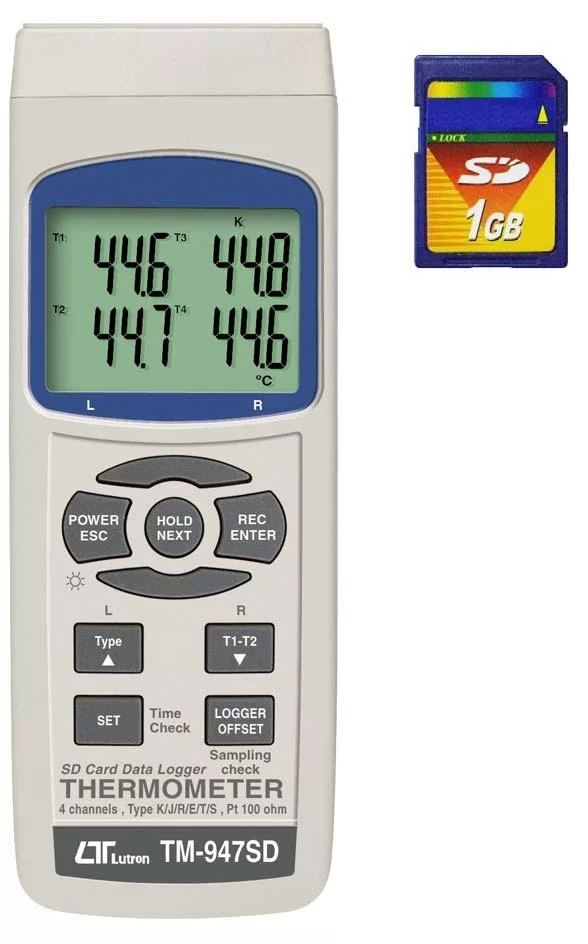

Description
* Type K/J/T/E/R/S, Pt 100 ohm, measurement with 4 display. Power off Auto shut off saves battery life or
* Show 4 channels display on the LCD at the same time. manual off by push button.
* Type K : -100 to 1300 ℃. Operating 0 to 50 ℃.
* Type J : -100 to 1200 ℃. Temperature
* Pt 100 ohm : -199.9 to 850.0 ℃. Operating Less than 85% R.H.
* ℃/℉, 0.1 degree/1 degree. Humidity
* 4 channels ( T1, T2, T3, T4 ), T1-T2. Power Supply * Alkaline or heavy duty DC 1.5 V battery
* Microcomputer circuit provides intelligent function ( UM3, AA ) x 6 PCs, or equivalent.
and high accuracy. * ADC 9V adapter input. ( AC/DC power
* Offset adjustment for the Type K/J/T/E/R/S measurement. adapter is optional ).
* Offset adjustment for the Pt 100 measurement. Power Current Normal operation ( w/o SD card save
* Measuring unit can select to ℃ or ℉. data and LCD Backlight is OFF) :
* Real time SD memory card Datalogger, it Built-in Clock Approx. DC 8.5 mA.
and Calendar, real time data recorder, sampling time set When SD card save the data but and
from 1 second to 3600 seconds. LCD Backlight is OFF) :
* Manual datalogger is available ( set the sampling Approx. DC 30 mA.
time to 0 second ), during execute the manual datalogger * AIf LCD backlight on, the power
function, it can set the different position ( location ) No. consumption will increase approx.
( position 1 to position 99 ). 14 mA.
* Innovation and easy operation, computer is not need to Weight 278 g/0.61 LB ( meter only ).
setup extra software, after execute datalogger, just take Dimension 177 x 68 x 45 mm
away the SD card from the meter and plug in the SD card (7.0 x 2.7x 1.9 inch)
into the computer, it can down load the all the measured Accessories * Instruction manual………………………1 PC
value with the time information ( year/month/date/ Included
hour/minute/second ) to the Excel directly, thenuser can Optional * Type K thermocouple probe.
make the further data or graphic analysis by themselves. Accessories TP-01, TP-02A. TP-03, TP-04, TP-05.
* SD card capacity : 1 GB to 16 GB. * Pt 100 ohm probe, TP-101.
* LCD with green light backlight, easy reading. * SD Card ( 1 GB )
* Can default auto power off or manual power off. * SD Card ( 2 GB )
* Data hold, record max. and min. reading. * USB cable, USB-01.
* Microcomputer circuit, high accuracy. * RS232 cable, UPCB-02.
* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter. * Data Acquisition software,
* RS232/USB PC COMPUTER interface. SW-U801-WIN. SW-E802.
* Heavy duty & compact housing case. * AC to DC 9V adapter.
* Hard carrying case, CA-06.
GENERAL SPECIFICATIONS:-
* Soft carrying case, CA-05A.
Circuit Custom one-chip of microprocessor LSI
circuit. ELECTRICAL SPECIFICATIONS (23± 5 ℃)
Display LCD size : 52 mm x 38 mm
LCD with green backlight ( ON/OFF ). PT 100 ohm
Channels T1, T2, T3, T4, T1-T2. Resolution Range Accuracy
Sensor type Type K thermocouple probe. 0.1 ℃ -199.9 to 850.0 ℃ ± ( 0.4 % + 1 ℃ )
Type J/T/E/R/S thermocouple probe. 0.1 ℉ -327.0 to 999.9 ℉ ± ( 0.4 % + 1.8 ℉ )
PT 100 ohm probe 1 ℉ 1000 to 1562 ℉ ± ( 0.4 % + 2 ℉ )
* Cooperate with an 0.00385 alpha * Pt 100 ohm probe TP-101 is the optional accessory.
coefficient, meet DIN IEC 751.
Resolution 0.1℃/1℃, 0.1℉/1 ℉. Type K/J/T/E/R/S
Datalogger Auto 1 second to 3600 seconds Sensor Resolution Range Accuracy
Sampling Time @ Sampling time can set to 1 second, Type
Setting range but memory data may loss. Type K 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
Manual Push the data logger button -50.0 to 999.9 ℃ ± ( 0.4 % + 0.5 ℃ )
once will save data one time. 1 ℃ 1000 to 1300 ℃ ± ( 0.4 % + 1 ℃ )
@ Set the sampling time to 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
0 second. -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ )
@ Manual mode, can also select the 1 ℉ 1000 to 2372 ℉ ± ( 0.4 % + 2 ℉ )
1 to 99 position ( Location ) no. Type J 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
Memory Card SD memory card. 1 GB to 16 GB. -50.0 to 999.9 ℃ ± ( 0.4 % + 0.5 ℃ )
Advanced * Set clock time ( Year/Month/Date, 1 ℃ 1000 to 1150 ℃ ± ( 0.4 % + 1 ℃ )
setting Hour/Minute/ Second ) 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
* Decimal point of SD card setting -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ )
* Auto power OFF management 1 ℉ 1000 to 2102 ℉ ± ( 0.4 % + 2 ℉ )
* Set beep Sound ON/OFF Type T 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
* Set temperature unit to ℃ or ℉ -50.0 to 400.0 ℃ ± ( 0.4 % + 0.5 ℃ )
* Set sampling time 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
* SD memory card Format -58.0 to 752.0 ℉ ± ( 0.4 % + 1 ℉ )
Temperature Automatic temp. compensation for the Type E 0.1 ℃ -50.1 to -100.0 ℃ ± ( 0.4 % + 1 ℃ )
Compensation type K/J/T/E/R/S thermometer. -50.0 to 900.0 ℃ ± ( 0.4 % + 0.5 ℃ )
Linear Linear Compensation for the full range. 0.1 ℉ -58.1 to -148.0 ℉ ± ( 0.4 % + 1.8 ℉ )
Compensation -58.0 to 999.9 ℉ ± ( 0.4 % + 1 ℉ )
Offset Available for Type K/J/T/E/R/S and 1 ℉ 1000 to 1652 ℉ ± ( 0.4 % + 2 ℉ )
Adjustment Pt 100 ohm. Type R 1 ℃ 0 to 1700 ℃ ± ( 0.5 % + 3 ℃ )
Probe Input Type K/J/T/E/R/S
Socket 2 pin thermocouple socket. 1 ℉ 32 to 3092 ℉ ± ( 0.5 % + 5 ℉ )
Pt 100 ohm : Ear phone socket.
Over Indication Show ” – – – – “. Type S 1 ℃ 0 to 1500 ℃ ± ( 0.5 % + 3 ℃ )
Data Hold Freeze the display reading.
Memory Recall Maximum & Minimum value. 1 ℉ 32 to 2732 ℉ ± ( 0.5 % + 5 ℉ )
Sampling Time Approx. 1 second.
of Display Remark :
Data Output RS 232/USB PC computer interface. a. Accuracy value is specified for the meter only.
* Connect the optional RS232 cable b. Accuracy is tested under the meter’s environment temperature
UPCB-02 will get the RS232 plug. within 23 ± 5℃.
* Connect the optional USB cable c. Linearity Correction :
USB-01 will get the USB plug. Memorize the thermocouple’s curve into the intelligent CPU
circuit,
