Description
FEATURES

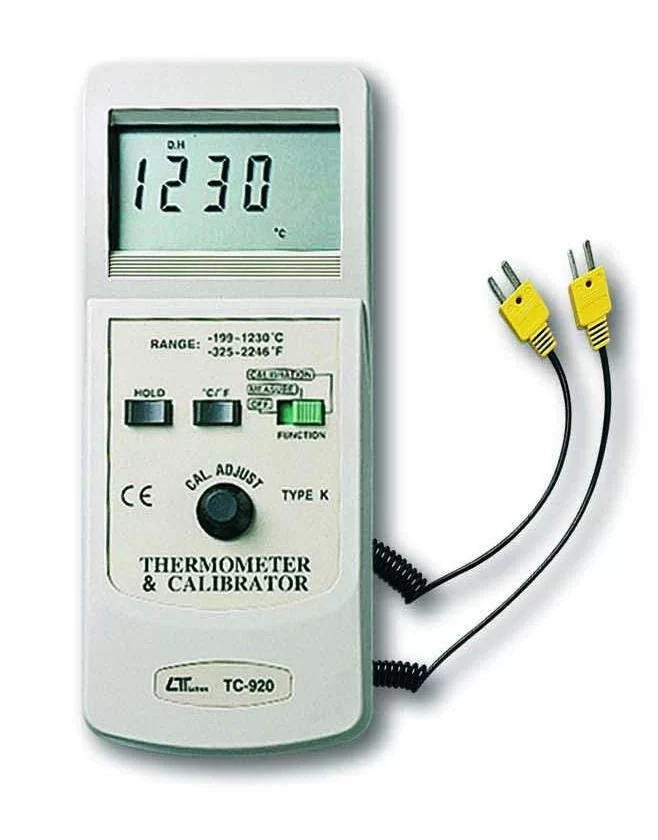

* 2 in 1, one meter included ” type k thermometer ” & Operating 0 to 50 ( ℃ ℃ 32 ℉ to 122 ℉ ).
” type k thermocouple calibrator “. Temperature
* Precision calibrator for type k thermometer, calibrating Operating Less than 80% RH.
process devices and measuring process signals. Humidity
* Wide range : -199℃ to 1230℃ ( -325℉ to 2246℉ ). Power Supply 006P DC 9V, MN1604/PP3 battery or
* Microprocessor circuit assures high accuracy and equivalent.
provides special functions and features. Heavy duty or Alkaline type.
* Build in temperature linearity compensation circuit, Power Approx. DC 9 mA.
high precision. Current
* ℃ & ℉ select & data hold function for the temperature Weight 280 g/0.62 LB ( included battery ).
measurement. Size 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).
* ℃ & ℉ select by the front button for the temperature Accessories Instruction Manual ………………………. 1 PC.
calibrator. Included Dual type k plug cable, DUK-02…….1 PC.
* Thermocouple sensor for Temp. measurement, fast Optional * Temperature probe, TP-01, TP-02A,
response time. Accessories TP-03, TP-04.
* RS 232 PC serial computer interface. ( Please ref. * Carrying case, CA-03, CA-04.
* Temp. measuring input to meet any standard type K page 9 ) * Software, SW-U801-WIN.
( NiCr-NiAl ) probe. * RS232 cable, UPCB-01.
* Fitted with standard type K input measuring socket. * USB cable, USB-01.
* Super large LCD display, easy reading.
* Operates from 006P DC 9V battery. ELECTRICAL SPECIFICATIONS (23± 5 ℃)
* Used the durable, long-lasting components, including
a strong, light weight ABS-plastic housing case. Type K thermocouple Calibrator
GENERAL SPECIFICATIONS Calibrator Range Resolution Accuracy
Circuit Custom one-chip of microprocessor LSI with -199.9 ℃ to -100.1 ℃ 0.1 ℃ ± (1 % + 1 ℃)
thermocouple linearity correction circuit. ℃ -100.0 ℃ to 999.9 ℃ 0.1 ℃ ± (0.5 % + 1 ℃)
Display 14.8 mm (0.58″) digit size. Super large LCD 1000 ℃ to 1230 ℃ 1 ℃
display with annunciator. -327 ℉ to -200 ℉ 1 ℉ ± (1 % + 2 ℉)
Function 2 in 1 : -199.9 ℉ to -148.1 ℉ 0.1 ℉
Type k thermometer, ℉ -148.0 ℉ to 999.9 ℉ 0.1 ℉ ± (0.5 % + 2 ℉)
Type k thermocouple calibrator. 1000 ℉ to 2246 ℉ 1 ℉
Range Measure :
-199.9℃ to 1230℃/ – 327℉ to 2246℉. Thermometer, measure
Calibrator
-199.9℃ to 1230℃/ – 327℉ to 2246℉. Thermometer Range Resolution Accuracy
Polarity ‘ – ‘ indicates negative polarity. -199.9 ℃ to -100.1 ℃ 0.1 ℃ ± (1 % + 1 ℃)
Thermometer Sensor Thermocouple K ℃ -100.0 ℃ to 999.9 ℃ 0.1 ℃ ± (0.5 % + 1 ℃)
Type ( NiCr-NiAl ). 1000 ℃ to 1230 ℃ 1 ℃
Input 10 Mega ohm. -327 ℉ to -200 ℉ 1 ℉ ± (1 % + 2 ℉)
Impedance -199.9 ℉ to -148.1 ℉ 0.1 ℉
Sampling Approx. 1 second. ℉ -148.0 ℉ to 999.9 ℉ 0.1 ℉ ± (0.5 % + 2 ℉)
Data Output RS 232 PC serial computer interface. 1000 ℉ to 2246 ℉ 1 ℉
Over input Indication of ” “. The accuracy specification of thermometer applies only to
indication the instrument itself and allowance must be made for limits
of error permitted in thermocouple.
