Description

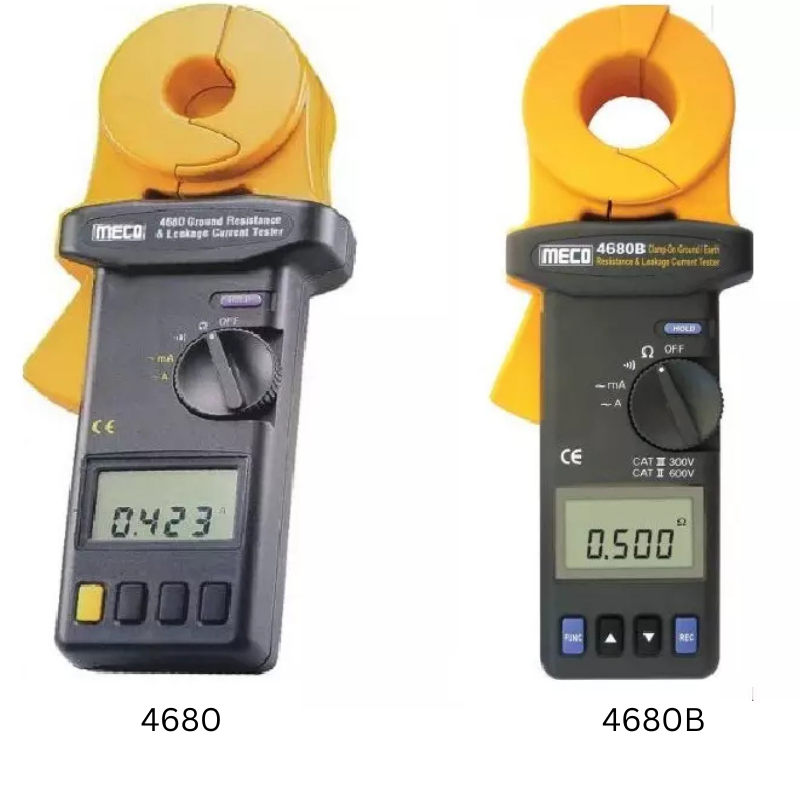

FOR MODEL: 4680
|
Jaw Opening Size |
23 mm |
|
Counts |
9999 |
|
Senser |
TRMS |
|
Battery |
9V Battery |
|
Resistance Resolution |
0.002Ω-20Ω |
|
Accessories |
9V Battery Installed x 1 Instruction Manual x 1 Carrying Box x 1 Cleaning Brush x 1 |
|
Continuity Test |
yes |
|
Display |
4 Digit LCD |
|
Resistance Accuracy |
±(1.5%+10d) |
|
Operating Temperature |
0˚C – 50˚C, : less tban 85% relative |
|
Storage Temperature |
-20˚C – 60˚C, less tban 75% relative |
|
Type of Product |
Earth Ground Resistance & Leakage Current Tester |
|
Current Accuracy (AC) |
±(3.0%rdg + 0.03A) |
|
Current Range (AC) |
4A – 30 A |
|
Weight |
0.670 Kg |
|
AC Current Resolution |
0.01 A |
|
Resistance Range (Ohm) |
0.025Ω -1500Ω |
|
Dimension |
257x100x47 mm |
|
Features |
Programmable High And Low Alarm,Programmable Data Loging,Continuity Loop Test,Auto Power Off,No Auxiliary Electrodes Needed |
|
Model No |
4680.0 |
|
Country of Origin |
India |
FOR MODEL: 4680B
|
Jaw Opening Size |
35 mm |
|
Counts |
9999 |
|
Senser |
TRMS |
|
Battery |
9V Battery |
|
Resistance Resolution |
0.002Ω-20Ω |
|
Accessories |
Resistance Calibration Plate x 1 9V Battery Installed x 1 Instruction Manual x 1 Carrying Box x 1 Cleaning Brush x 1 |
|
Continuity Test |
yes |
|
Display |
4 Digit LCD |
|
Resistance Accuracy |
±(1.5%+10d) |
|
Operating Temperature |
0˚C – 50˚C, : less tban 85% relative |
|
Storage Temperature |
-20˚C – 60˚C, less tban 75% relative |
|
Type of Product |
Earth Ground Resistance & Leakage Current Tester |
|
Current Accuracy (AC) |
±(3.0%rdg + 0.03A) |
|
Current Range (AC) |
4A – 35 A |
|
Weight |
0.790 Kg |
|
AC Current Resolution |
0.01 A |
|
Resistance Range (Ohm) |
0.025Ω -1500Ω |
|
Dimension |
276x102x51 mm |
|
Features |
Programmable High And Low Alarm,Programmable Data Loging,Continuity Loop Test,Auto Power Off,No Auxiliary Electrodes Needed |
|
Model No |
4680B |
|
Country of Origin |
India |
