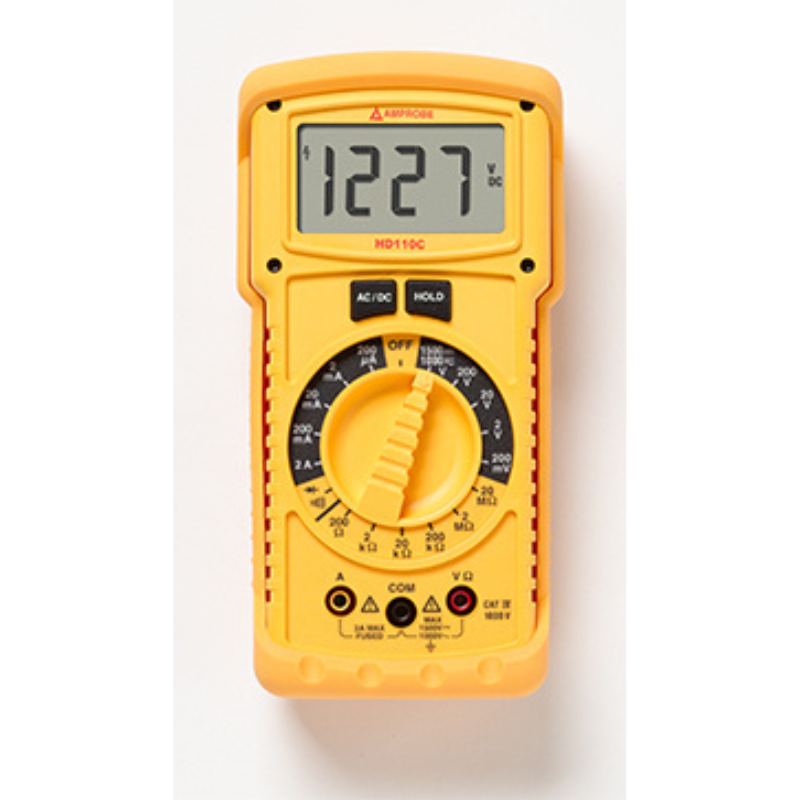

Amprobe HD110C IP67 Heavy Duty Multimeter

Original price was: ₹55,000.00.Current price is: ₹37,000.00. inc. gst

Highest voltage capability, measuring to 1500 V DC and 1000 V AC
CAT IV 1000 V rated
Special sealing for environment and water resistance: IP67 rated
Constructed with drop-resistant housing and PCB mounting
Magne-Grip™ holster, frees both hands for work
Includes high voltage test leads with threaded alligator clips
Display 3-1/2 digit LCD, 1999 counts, with annunciators
Automatic polarity indication
Low battery indication
Standard 9 V battery, NEDA 1604, JIS 006P,IEC 6F2
Flame retardant, high-impact thermoplastic case
Resistance ranges 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ

Categories: Amprobe, Multimeters Brand: Amprobe

Description
Reviews (0)

Description

The Amprobe HD110C Heavy Duty Multimeter is designed for professional use in harsh environments. The meter is unusually rugged and reliable in everyday heavy use applications. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.

Built of tough, fire-retardant thermoplastic resistant to grease and chemical spills, with all sensitive components shock-mounted for a drop resistant to at least eight feet. The HD110C has an extended voltage measurement capability of 1500 V DC and 1000 V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV.

FEATURE	HD110C
DC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V
AC Voltage	200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V
Current	AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A
Resistance	200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO
Diode	•
Continuity	•
Frequency	–
Capacitance	–
Temperature	–
True-rms	–

Specifications
DC Volts range:	200 mV, 2 V, 20 V, 200 V, 1500 V
DC Volts resolution:	0.1 mV
DC Volts accuracy:	All ranges ±(0.1 % rdg+2 dgts)
DC Volts input impedance:	10 MO
DC Volts OL protection:	>1500 V DC/1000 V AC rms
DC Volts transient protection:	>12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
AC Volts (45 Hz to 2 kHz) ranges:	200 mV, 2 V, 20 V, 200 V, 1000 V
AC Volts (45 Hz to 2 kHz) resolution:	0.1 mV
AC Volts (45 Hz to 2 kHz) accuracy:	200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts),
AC Volts (45 Hz to 2 kHz) accuracy:	200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) accuracy:	1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts)
AC Volts (45 Hz to 2 kHz) accuracy:	1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) input impedance:	10 MO
AC Volts (45 Hz to 2 kHz) OL protection:	1500 V DC/1000 V AC rms
AC Volts (45 Hz to 2 kHz) transient protection:	12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV.
DC Current range:	200 µA, 2 mA, 20 mA, 200 mA, 2 A
DC Current resolution:	0.1 µA
DC Current accuracy:	200 µA to 20 mA ±(0.5 % rdg+2 dgts)
DC Current accuracy:	200 mA to 2 A ±(1.0 % rdg+2 dgts)
