Description

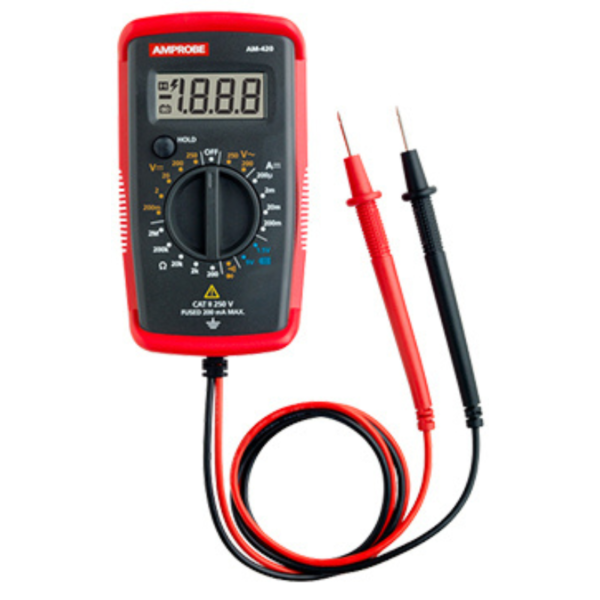

Designed for in home repair and electrical testing applications, the AM-420 Digital Multimeter accurately measures voltage in receptacles, switches, extension cords and light fixtures. Use the continuity function to easily troubleshoot light bulbs and fuses. This compact tools is designed for in-home repair and electrical testing applications, including measuring presence of voltage in electrical sockets, extension cords, batteries and other electrical circuits up to 250 V. It is a must have tool for residential projects including installation, troubleshooting or repair of light fixtures, fans or appliances. DC ranges of voltage and current are included to help with automotive diagnostics of electrical systems. The battery test feature checks the amount of charge remaining in standard 1.5 V and 9 V batteries.
|
Feature
|
AM-420 | Best Accuracy |
|
AC Voltage
|
200.0 / 300 V | +/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz, 2 V to 200 V |
|
DC Voltage
|
200 mV 2.000 / 20.00 / 200.0 / 250 V |
+/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V |
|
DC Current
|
200.0 µA 2.000 / 20.00 / 200.0 mA |
+/-(1.2% rdg + 5 LSD) @ 200 µA to 20 mA |
|
Resistance
|
200.0 Ω 2.000 / 20.00 / 200.0 kΩ |
+/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ |
|
Continuity
|
• | |
|
Diode Test
|
• | |
|
Battery test
|
1.5 V, 9 V | +/-(5.0% rdg + 1 LSD) |
|
Data Hold
|
• |
|
General Specifications
|
|
|
Maximum display
|
1999, updates 2 to 3/sec
|
|
Range
|
Manual-ranging
|
|
Operating temperature
|
32°F to 104°F (0°C to +40°C)
|
|
Relative humidity
|
32°F to 86°F (0°C to +30°C) ≤75%; 86°F to 104°F (+30°C to +40°C) ≤50%
|
|
Pollution degree
|
2
|
|
Operating altitude
|
≤ 6561 ft (2000 m)
|
|
Storage temperature
|
14°F to 122°F (-10°C to +50°C)
|
|
Electromagnetic compatibility
|
In an RF filed of 1V/m = Specified accuracy ± 5%. RF field > 1V/m is not specified.
|
|
Over-range indication
|
” 1 “, “-1” or maximum display reading
|
|
Battery
|
One 9V alkaline battery (6LF22, 6LR61, MN1604) or equivalent
|
|
Battery life
|
Alkaline: 100 hours typical
|
|
Low battery indication
|
 |
|
Overvoltage Category
|
CAT II 250V
|
|
Safety Compliance
|
IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04 Update No.1:2008
|
|
EMC Compliance
|
Conforms to IEC 61326-1
|
